What Is DoIP (Diagnostics Over Internet Protocol)? Do OEM Tools Support It?

DoIP (Diagnostics over Internet Protocol) is a modern protocol crucial for automotive diagnostics and communication; yes, many OEM tools support it. At CAR-SCAN-TOOL.EDU.VN, we recognize the increasing importance of DoIP in today’s complex automotive landscape. Investing in comprehensive diagnostic training is essential to effectively utilize scan tools and master data interpretation for optimal vehicle maintenance and repair. Our remote technician education provides the necessary skills for advanced automotive diagnostics and professional development.

1. What is DoIP (Diagnostics over Internet Protocol)?

DoIP (Diagnostics over Internet Protocol) is an automotive diagnostic protocol that uses the Internet Protocol (IP) for communication between a vehicle’s electronic control units (ECUs) and external diagnostic tools. DoIP allows for remote diagnostics and software updates over a network, which is essential for modern vehicles with advanced electronics.

Traditional diagnostic systems relied on physical connections and were limited by speed and range. DoIP overcomes these limitations by using broader, faster IP networks. As vehicles become more connected, DoIP supports the increasing need for advanced diagnostic capabilities, offering faster and more reliable data transmission.

2. What are the technical specifications of DoIP?

DoIP’s technical specifications are designed to ensure efficient and secure communication in automotive diagnostics:

• Protocol Basis: DoIP uses the Internet Protocol (IP) as its foundation, allowing it to operate over any network that supports IP, including Ethernet.
• ISO Standard: Standardized under ISO 13400, which dictates data transmission and security across networks.
• Data Transfer: High-speed data transfer between diagnostic tools and vehicle systems supports faster updates and more comprehensive diagnostics.
• Transport Layer: Uses TCP/IP or UDP/IP for reliable and efficient data exchange.
• Vehicle Identification: Each vehicle is identified via a unique Vehicle Identification Number (VIN).
• Gateway Functionality: Acts as a gateway in the vehicle’s network, routing diagnostic messages between external test equipment and the vehicle’s internal network nodes.
• Diagnostic Session Initiation: Enables initiation of diagnostic sessions without physical connections, using network capabilities.
• Routing Activation: Ensures secure communication by establishing a specific route for data exchange, protecting against unauthorized access.
• Encryption and Authentication: Employs robust security protocols to safeguard data transmission, preventing interception or manipulation.
• Diagnostic Message Format: Uses a standardized message format, including the VIN, source address, and target address, enhancing clarity and accuracy.
• Scalability: Adapts to different network sizes, from individual vehicles to entire fleets, without significant infrastructure changes.

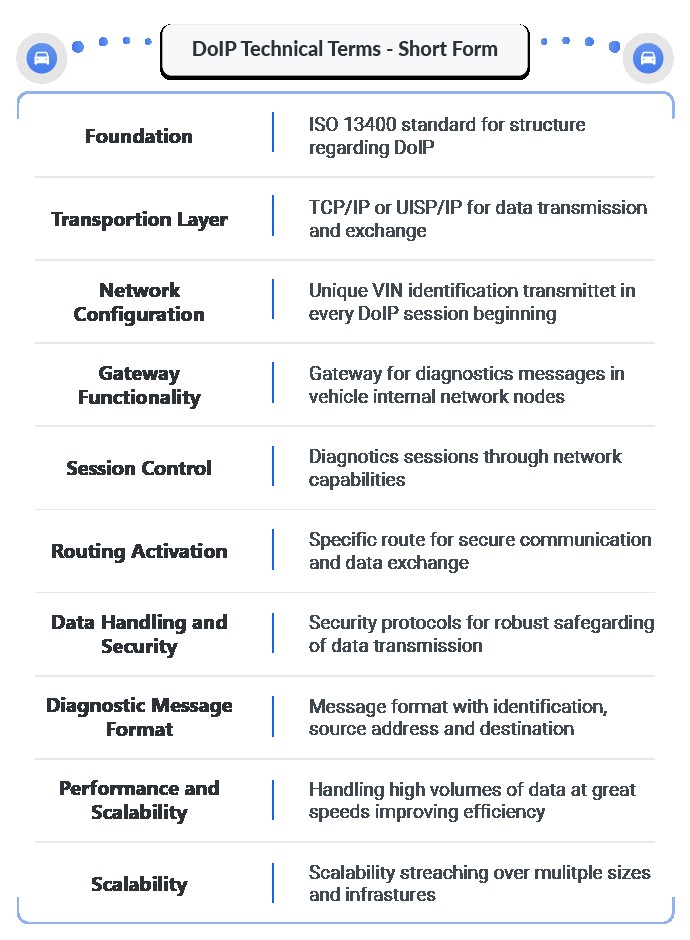

Illustration of DoIP and the modern technical specifications there is to it

3. What are the applications of DoIP in automotive technology?

DoIP is reshaping vehicle servicing and maintenance through real-time troubleshooting and streamlined updates that can be performed remotely. This offers benefits to manufacturers, technicians, and vehicle owners.

Here are some use cases:

• Remote Diagnostics: Technicians can diagnose issues remotely, reducing the need for in-person appointments and minimizing vehicle downtime. This capability is invaluable for fleet management and remote areas.
• Software Updates: Vehicles receive the latest software updates over-the-air (OTA), ensuring they are equipped with the newest features and improvements without physical service visits.
• Manufacturing and Quality Control: DoIP allows for real-time diagnostics and updates during assembly, ensuring vehicles meet quality standards with reduced errors and post-production corrections.
• Advanced Driver-Assistance Systems (ADAS): DoIP supports faster diagnostics and updates for complex systems that require real-time data, ensuring ADAS features operate correctly.
• Electric Vehicles (EVs): DoIP enables efficient management of software controlling battery management systems and other critical EV functions.
• Global Operations: Manufacturers and service providers perform diagnostics and updates without being physically present, reducing downtime and operational costs globally.

4. What are the benefits of DoIP?

DoIP offers several key benefits:

• Enhanced Efficiency: High-speed networks reduce the time for diagnostics and updates.
• Scalability: Adaptable to small workshops and large-scale manufacturing environments.
• Cost-Effectiveness: Reduces reliance on physical tools and manual interventions, cutting operational costs and enhancing service quality.

The strategic adoption of DoIP optimizes operational workflows and serves as a cornerstone for future advancements in vehicle technology, aligning with modern communication standards in automotive diagnostics and maintenance.

5. What are the challenges of DoIP and their solutions?

Implementing DoIP presents several challenges:

• Network Security: Network-based diagnostics introduce significant data security challenges, requiring robust cybersecurity measures.
• Integration with Existing Systems: Older vehicles and systems use different standards, complicating DoIP integration.

To address these challenges, solutions include:

• Implementing advanced encryption and authentication protocols to protect data transmission.
• Developing gateway solutions that allow DoIP-equipped diagnostic tools to communicate with legacy systems.
• Providing comprehensive training for technicians to handle the complexities of integrating DoIP with existing systems.

Overcoming these obstacles improves DoIP’s applicability and security, ensuring a smoother transition for stakeholders.

6. How can a company successfully implement DoIP to enhance its fleet management system?

Here’s an example of a company successfully using DoIP in its fleet management system:

Section	Details
Background	Industry: Transportation and Logistics; Fleet Size: Over 300 Vehicles; Challenge: Reduce downtime and improve efficiency of software updates.
Implementation	Remote Diagnostics: Enabled remote diagnostics to reduce physical checks; Automated Software Updates: Introduced OTA updates for simultaneous software improvements.
Results	Reduced Downtime: Cut vehicle downtime by 40% through quicker issue resolution; Cost Savings: Decreased costs associated with manual updates and maintenance; Improved Fleet Performance: Enhanced reliability and reduced breakdowns through continuous monitoring.

7. What are the core technical aspects of DoIP?

The core technical aspects of DoIP ensure its effectiveness in modern automotive diagnostics:

• Protocol Basics:
  • Operates on the ISO 13400 standard, specifying how diagnostic communication over Ethernet (DoIP) should be structured.
  • Utilizes TCP/IP or UDP/IP for data transmission, ensuring reliable and efficient data exchange.
• Network Configuration:
  • Each vehicle is identified through a unique Vehicle Identification Number (VIN), transmitted at the beginning of every DoIP session.
  • Acts as a gateway in the vehicle’s network, routing diagnostic messages between external test equipment and the vehicle’s internal network nodes.
• Session Control:
  • Allows initiation of diagnostic sessions without physical connections, using network capabilities.
  • Ensures secure communication by establishing a specific route for data exchange, protecting against unauthorized access.
• Data Handling and Security:
  • Employs robust security protocols to safeguard data transmission, preventing interception or manipulation.
  • Uses a standardized message format, including the VIN, source address, and target address, enhancing clarity and accuracy.
• Performance and Scalability:
  • Handles high data volumes at greater speeds, significantly improving diagnostic times and system updates.
  • Adapts to different network sizes, from individual vehicles to entire fleets, without necessitating significant infrastructure changes.

Listed special Core Technical Aspects about DoIP and what it brings to vehicle diagnostics

8. What are the advantages of the technical implementation of DoIP?

DoIP’s technical attributes enhance its effectiveness in automotive diagnostics:

• Efficiency: Reduces time for diagnostics and software updates, allowing faster turnaround times in maintenance and repair.
• Flexibility: Can be implemented in various settings, from small repair shops to large manufacturing plants, with minimal adjustments.
• Cost-Effectiveness: Decreases need for extensive hardware setups and reduces operational costs over time due to its network-based nature.

By leveraging IP networks, DoIP enhances vehicle diagnostics capability and efficiency and ensures greater security and adaptability for future technological advancements.

9. How does DoIP compare to traditional protocols?

DoIP offers significant advantages over traditional diagnostic protocols:

Feature	DoIP	Traditional Protocols
Network Integration	Utilizes IP networks, enabling diagnostics and updates over Ethernet or Wi-Fi.	Relies on point-to-point connections like CAN (Controller Area Network) or K-Line.
Data Transfer Speed	Supports high-speed data transmission for large data requirements in modern vehicles.	Limited by slower transmission rates, leading to longer diagnostic times.
System Compatibility	Integrates with modern vehicle electronics and telematics systems, supporting ADAS and OTA updates.	Compatibility issues with newer systems may necessitate additional bridging hardware.
Scalability	Easily adaptable to small garages and large-scale automotive plants.	Scaling up often requires extensive hardware, making it less flexible and more costly.
Operational Cost	Minimizes need for extensive physical diagnostic setups, reducing labor and hardware costs.	Higher ongoing costs due to manual testing requirements and physical connections.

DoIP meets current demands and anticipates future needs with scalable, efficient, and flexible capabilities. It handles the sophisticated diagnostics required by modern vehicles, making it a strategic investment for automotive technology’s future.

10. Do OEM Tools Support DoIP?

Yes, many OEM (Original Equipment Manufacturer) diagnostic tools support DoIP. The increasing complexity of modern vehicles necessitates the use of advanced diagnostic protocols like DoIP. Several OEMs have integrated DoIP support into their diagnostic tools to facilitate faster and more efficient diagnostics and software updates.

Examples of OEM tools that support DoIP:

• BMW: Uses DoIP in its ISTA (Integrated Service Technical Application) diagnostic system for newer vehicle models.
• Mercedes-Benz: Employs DoIP in its XENTRY diagnostic system for enhanced diagnostics and ECU programming.
• Volkswagen Group (VW, Audi, Porsche): Incorporates DoIP in its ODIS (Offboard Diagnostic Information System) for advanced vehicle diagnostics and software updates.
• General Motors (GM): Utilizes DoIP in its GDS2 (Global Diagnostic System 2) for newer vehicle models, allowing for faster and more reliable diagnostics.
• Ford: Implements DoIP in its Ford Diagnostic and Repair System (FDRS) for advanced vehicle diagnostics and software updates.

The integration of DoIP into OEM diagnostic tools reflects the automotive industry’s shift towards more connected and software-driven vehicles. Technicians equipped with DoIP-compatible tools can perform complex tasks such as ECU flashing, module programming, and comprehensive system diagnostics more efficiently.

11. How can CAR-SCAN-TOOL.EDU.VN enhance vehicle diagnostics?

CAR-SCAN-TOOL.EDU.VN enhances automotive diagnostics with state-of-the-art fleet maintenance solutions designed for seamless integration and superior performance. Our key features include real-time diagnostics, allowing immediate issue detection and resolution, and over-the-air updates, ensuring vehicle software is always updated using DoIP’s network capabilities.

Additional benefits include:

• Faster, more reliable remote diagnostics and ECU flashing: Enhancing both speed and reliability.
• Compliance with ISO 13400 standards: Enabling quick implementation of remote vehicle diagnostics tailored to specific production needs.

Stay Updated with Your ECU!Unlock real-time insights and optimize your driving with AutoPi TMU. Be in tune with your ECU.

Check Our Prices!

Learn more

12. What is the role of training in mastering DoIP diagnostics?

Mastering DoIP diagnostics requires specialized training to effectively use the technology and interpret the data it provides. Here’s why training is essential:

• Understanding the Protocol: DoIP operates differently from traditional diagnostic methods. Training helps technicians understand its underlying principles, network configurations, and security protocols.
• Using Diagnostic Tools: DoIP-compatible scan tools have advanced features. Training ensures technicians can use these tools effectively to perform tasks such as ECU flashing and module programming.
• Interpreting Data: DoIP provides large amounts of data. Training helps technicians interpret this data to diagnose issues accurately and efficiently.
• Troubleshooting: DoIP systems can be complex. Training equips technicians with the skills to troubleshoot problems and ensure smooth operation.
• Keeping Up with Updates: Automotive technology is constantly evolving. Continuous training keeps technicians updated on the latest DoIP advancements and best practices.

CAR-SCAN-TOOL.EDU.VN offers comprehensive training programs designed to equip technicians with the knowledge and skills needed to master DoIP diagnostics.

13. What types of scan tools are essential for modern automotive diagnostics?

Modern automotive diagnostics require advanced scan tools to effectively troubleshoot and maintain complex vehicle systems. Here are some essential types of scan tools:

• OEM Diagnostic Tools: Designed by vehicle manufacturers, these tools offer the most comprehensive diagnostic capabilities for their specific vehicles.
• Aftermarket Scan Tools: These versatile tools support a wide range of vehicle makes and models, making them suitable for independent repair shops.
• OBD-II Scanners: Essential for reading and clearing diagnostic trouble codes (DTCs) and monitoring basic vehicle parameters.
• DoIP-Enabled Scanners: Necessary for diagnosing and updating newer vehicles that use the DoIP protocol for communication.
• Wireless Scanners: Offering greater flexibility and convenience, these scanners connect to vehicles via Bluetooth or Wi-Fi.

Investing in the right scan tools is crucial for technicians to accurately diagnose and repair modern vehicles.

14. How does CAR-SCAN-TOOL.EDU.VN provide remote technician education?

CAR-SCAN-TOOL.EDU.VN offers remote technician education that provides technicians with the skills and knowledge needed to excel in modern automotive diagnostics. Our remote programs include:

• Online Courses: Self-paced modules covering a range of diagnostic topics.
• Live Webinars: Interactive sessions with expert instructors providing real-time training and Q&A.
• Virtual Labs: Simulated environments where technicians can practice diagnostic procedures.
• Certification Programs: Validating technicians’ skills and knowledge in specific areas of automotive diagnostics.

Our remote education is designed to be flexible and accessible, allowing technicians to learn at their own pace and from any location.

15. What are the benefits of remote technician education?

Remote technician education offers several advantages:

• Flexibility: Technicians can learn at their own pace and schedule.
• Accessibility: Education is available from any location with an internet connection.
• Cost-Effectiveness: Reduced travel and accommodation expenses.
• Expert Instruction: Access to industry experts and experienced instructors.
• Comprehensive Curriculum: Covering the latest automotive diagnostic technologies and best practices.

Remote education enables technicians to enhance their skills and advance their careers without disrupting their work schedules.

16. What are the key features of the training programs offered by CAR-SCAN-TOOL.EDU.VN?

CAR-SCAN-TOOL.EDU.VN’s training programs are designed to provide technicians with the knowledge and skills needed to excel in modern automotive diagnostics. Key features of our programs include:

• Comprehensive Curriculum: Covering a range of diagnostic topics, from basic OBD-II diagnostics to advanced DoIP protocols.
• Hands-On Training: Practical exercises using virtual labs and real-world case studies.
• Expert Instructors: Experienced professionals with in-depth knowledge of automotive diagnostics.
• Certification: Validating technicians’ skills and knowledge.
• Continuous Updates: Keeping technicians up-to-date with the latest technologies and best practices.

Our training programs are designed to be engaging and effective, providing technicians with the tools they need to succeed.

17. How can I choose the right scan tool for my needs?

Choosing the right scan tool depends on your specific needs and budget. Here are some factors to consider:

• Vehicle Coverage: Ensure the scan tool supports the makes and models you work on.
• Diagnostic Capabilities: Determine if the tool supports the diagnostic functions you need, such as reading DTCs, live data streaming, and bidirectional control.
• Ease of Use: Look for a tool with an intuitive interface and clear instructions.
• Updates and Support: Check if the tool offers regular software updates and reliable technical support.
• Budget: Scan tools range in price from a few hundred to several thousand dollars. Set a budget and find a tool that meets your needs within that range.

By considering these factors, you can choose a scan tool that will help you diagnose and repair vehicles efficiently.

18. How can I stay updated on the latest advancements in automotive diagnostics?

Staying updated on the latest advancements in automotive diagnostics is crucial for technicians to remain competitive. Here are some ways to stay informed:

• Attend Industry Conferences: Participate in automotive industry conferences to learn about new technologies and best practices.
• Read Trade Publications: Subscribe to automotive trade publications to stay informed about the latest news and trends.
• Take Training Courses: Enroll in training courses to learn about new diagnostic techniques and tools.
• Join Online Forums: Participate in online forums and communities to exchange information with other technicians.
• Follow Industry Experts: Follow industry experts on social media to stay updated on the latest advancements.

By staying informed, technicians can enhance their skills and provide better service to their customers.

19. What are the salary expectations for automotive technicians with advanced diagnostic skills?

Automotive technicians with advanced diagnostic skills can command higher salaries due to their ability to diagnose and repair complex vehicle systems. Factors influencing salary expectations include:

• Experience: More experienced technicians typically earn higher salaries.
• Certifications: Technicians with certifications earn more.
• Location: Salaries vary depending on the cost of living in different areas.
• Specialization: Technicians specializing in advanced diagnostics or specific vehicle systems may earn more.

Technicians who invest in training and develop advanced diagnostic skills can significantly increase their earning potential.

20. How can I contact CAR-SCAN-TOOL.EDU.VN for more information about training programs?

To learn more about our training programs, contact us:

• Address: 555 Automotive Way, Suite 100, Los Angeles, CA 90017, United States
• WhatsApp: +1 (641) 206-8880
• Website: CAR-SCAN-TOOL.EDU.VN

Our team is ready to answer your questions and help you choose the right training program for your needs.

By understanding DoIP and investing in the right training, technicians can enhance their skills, advance their careers, and provide better service to their customers. CAR-SCAN-TOOL.EDU.VN is committed to providing high-quality education and resources to support technicians in mastering modern automotive diagnostics.
