Can Car Scan Tools Perform OCS Calibration/Zero-Point Setting?

Car scan tools are essential for modern automotive repair, and understanding their capabilities, especially regarding Occupant Classification System (OCS) calibration, is critical. At CAR-SCAN-TOOL.EDU.VN, we provide in-depth training to help technicians master these tools and perform accurate OCS calibrations and zero-point settings. Explore our remote technician education programs for automotive scanner training to enhance your diagnostic skills and stay ahead in the rapidly evolving automotive technology landscape, including advanced car diagnostics training and automotive system resets.

1. What is OCS Calibration and Why is it Important?

Occupant Classification System (OCS) calibration, also known as zero-point setting, is a crucial process that ensures the vehicle’s airbag system functions correctly by accurately determining the weight and position of the occupant in the front passenger seat. This calibration is essential because it allows the system to decide whether to deploy the airbag in the event of a collision, considering the potential harm an airbag might cause to a child or a smaller adult.

The OCS uses sensors to evaluate the weight of the front passenger seat occupant. If the OCS isn’t correctly calibrated, it might misinterpret the occupant’s weight, leading to incorrect decisions about airbag deployment. This can result in either failing to deploy the airbag when needed or deploying it when it could cause harm.

According to Eric Mendoza of Toyota collision operations, the necessity for OCS calibration varies with the vehicle model and repair specifics, underscoring the importance of consulting the repair manual for each vehicle.

2. When is OCS Calibration Required?

Knowing when to perform an OCS calibration is essential for ensuring vehicle safety and compliance with repair standards. The need for calibration can arise under several circumstances:

• After a Collision: Any accident or collision, even minor ones, can disrupt the OCS’s calibration.
• ECU Replacement: If the occupant classification ECU is replaced, a new calibration is essential.
• Sensor Replacement: Replacement of any OCS sensor necessitates recalibration to ensure system accuracy.
• Seat Modifications: Removing or reinstalling the front passenger seat, or installing accessories like seat covers, can affect the OCS and require calibration.
• Fault Codes: If the system outputs a diagnostic trouble code (DTC) related to the OCS, calibration is often necessary.
• Incorrect Indicator Status: If the passenger airbag ON/OFF indicator shows an incorrect status (e.g., indicating OFF when the seat is occupied), calibration is needed.
• Component Replacement: Replacing components such as seat rails or load sensors may also require OCS recalibration.

3. Can Car Scan Tools Perform OCS Calibration?

Yes, many advanced car scan tools can perform OCS calibration, but it depends on the tool’s capabilities and the vehicle’s make and model.

Modern, advanced scan tools have the capability to perform OCS calibrations. These tools can communicate with the vehicle’s computer to reset and calibrate the OCS, ensuring it functions according to the manufacturer’s specifications. However, the ability to perform OCS calibration varies among different scan tools. Entry-level scan tools may not support this function, while professional-grade tools offer comprehensive diagnostic and calibration features. It’s crucial to ensure that the scan tool supports OCS calibration for the specific make and model of the vehicle being serviced.

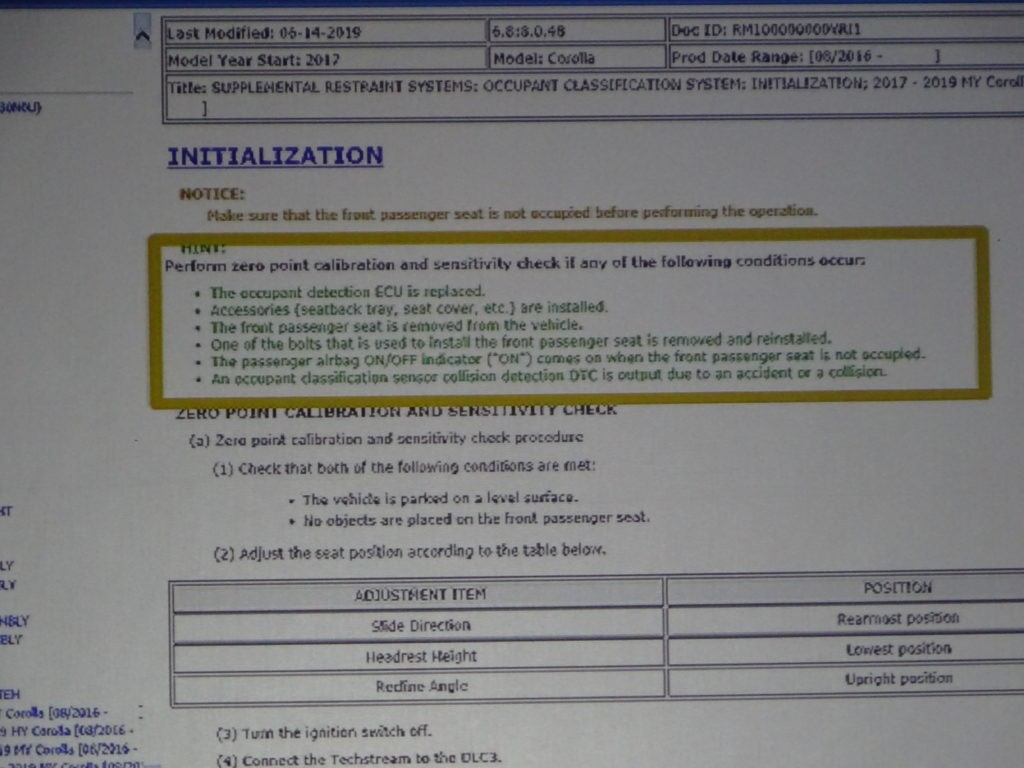

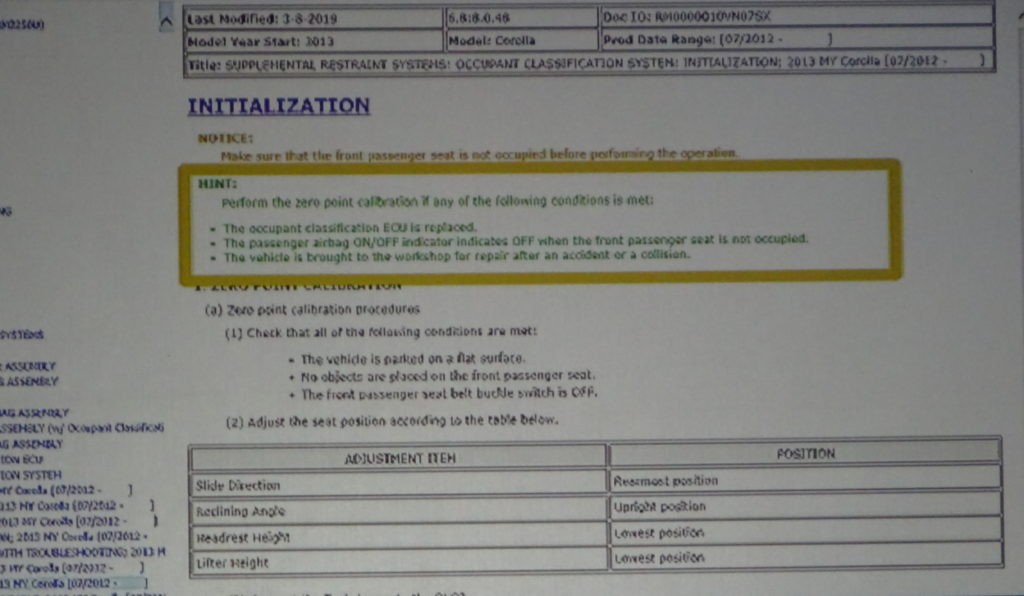

According to Toyota, the process can vary significantly between models, as seen between a 2013 and a 2017 Corolla. Therefore, technicians need to consult the vehicle-specific repair procedures to determine the correct steps and whether their scan tool is capable of performing the required calibration.

Toyota OCS Calibration Requirements

4. What Types of Scan Tools Support OCS Calibration?

The types of scan tools that support OCS calibration typically fall into a few categories:

• OEM Scan Tools: These are the scan tools manufactured by the vehicle manufacturer. They offer the most comprehensive coverage and capabilities for their specific brand, including OCS calibration. For example, Toyota uses its Techstream software for diagnostics and calibrations.
• Professional-Grade Aftermarket Scan Tools: These are high-end scan tools from aftermarket manufacturers like Autel, Snap-on, and Bosch. They offer extensive coverage across various makes and models and often include advanced functions like OCS calibration.
• Specialized Calibration Tools: Some companies specialize in calibration tools that focus on specific systems, such as ADAS (Advanced Driver Assistance Systems) and OCS. These tools are designed to perform calibrations accurately and efficiently.

5. How to Perform OCS Calibration Using a Scan Tool: A Step-by-Step Guide

Performing OCS calibration involves a series of steps that must be followed precisely to ensure accuracy and safety:

1. Preparation: Park the vehicle on a level surface. Ensure the passenger seat is empty and free from any objects.
2. Connect Scan Tool: Plug the scan tool into the vehicle’s OBD-II port.
3. Access OCS Function: Navigate to the OCS or airbag system menu in the scan tool’s software.
4. Follow On-Screen Instructions: The scan tool will provide step-by-step instructions. This usually involves selecting the “OCS Calibration” or “Zero-Point Calibration” function.
5. Input Data: The scan tool might require you to input specific data, such as the vehicle’s VIN or calibration codes.
6. Execute Calibration: Follow the prompts to start the calibration process. The scan tool will communicate with the OCS ECU to reset and calibrate the sensors.
7. Verification: After calibration, the scan tool will usually perform a verification test to ensure the OCS is functioning correctly.
8. Clear Codes: Clear any diagnostic trouble codes (DTCs) related to the OCS.
9. Test: Conduct a final test by placing a known weight on the passenger seat to verify the system recognizes it accurately.

6. Common Challenges in Performing OCS Calibration

While OCS calibration can be straightforward, technicians may encounter several challenges:

• Software Updates: Scan tools require regular software updates to support the latest vehicle models and calibration procedures.
• Compatibility Issues: Not all scan tools are compatible with every vehicle. It’s essential to verify compatibility before attempting calibration.
• Incorrect Procedures: Following the wrong calibration procedure can lead to inaccurate results or system malfunctions.
• Sensor Problems: Faulty or damaged OCS sensors can prevent successful calibration.
• Environmental Factors: Calibration should be performed in a controlled environment, free from vibrations or interference.

7. The Importance of Training and Education

Given the complexities and potential challenges of OCS calibration, proper training and education are crucial. CAR-SCAN-TOOL.EDU.VN offers comprehensive training programs designed to equip technicians with the knowledge and skills needed to perform OCS calibrations accurately and efficiently.

• In-Depth Knowledge: Our training programs cover the theory behind OCS systems, calibration procedures, and troubleshooting techniques.
• Hands-On Experience: We provide hands-on training using real scan tools and vehicles, allowing technicians to gain practical experience.
• Latest Technology: Our courses are updated regularly to reflect the latest advancements in automotive technology and calibration procedures.

8. OEM Information and Repair Procedures

Access to OEM (Original Equipment Manufacturer) repair procedures is critical for performing accurate OCS calibrations. These procedures provide detailed, vehicle-specific instructions that ensure the calibration is performed correctly.

OEM information includes:

• Step-by-Step Instructions: Detailed procedures for performing OCS calibration on specific vehicle models.
• Torque Specifications: Correct torque values for any bolts that need to be removed or adjusted during the calibration process.
• Wiring Diagrams: Diagrams showing the wiring and connections of the OCS system.
• Troubleshooting Guides: Guides for diagnosing and resolving OCS-related issues.
• Technical Service Bulletins (TSBs): Information on common issues and updated procedures for specific vehicles.

Toyota, for example, provides access to its repair procedures through its TIS (Technical Information System) website. Eric Mendoza emphasized the importance of checking the INITIALIZATION section of the repair procedures for each vehicle to determine the specific OCS calibration requirements.

9. The Role of Car-Scan-Tool.Edu.Vn in OCS Calibration Training

CAR-SCAN-TOOL.EDU.VN is dedicated to providing top-tier training in automotive diagnostics and repair, with a strong focus on OCS calibration. Our programs are designed to meet the needs of both novice and experienced technicians, offering a range of courses that cover the fundamentals of OCS systems and advanced calibration techniques.

Our courses include:

• Basic Diagnostics: An introduction to automotive diagnostic principles and the use of scan tools.
• Advanced OCS Calibration: In-depth training on OCS systems, calibration procedures, and troubleshooting.
• Hands-On Workshops: Practical sessions where technicians can apply their knowledge under the guidance of experienced instructors.
• Online Resources: Access to a library of training materials, videos, and technical documents.

10. How to Choose the Right Car Scan Tool for OCS Calibration

Selecting the right car scan tool is essential for performing OCS calibrations effectively. Here are some factors to consider:

• Vehicle Coverage: Ensure the scan tool supports OCS calibration for the makes and models you service.
• Functionality: Look for a scan tool that offers comprehensive diagnostic functions, including OCS calibration, data logging, and bi-directional controls.
• Ease of Use: Choose a scan tool with an intuitive interface and clear instructions.
• Updates: Ensure the scan tool receives regular software updates to support the latest vehicles and procedures.
• Customer Support: Opt for a brand that offers reliable customer support and technical assistance.
• Budget: Consider your budget and choose a scan tool that offers the best value for your needs.

11. Case Studies: Successful OCS Calibrations with the Right Tools

• Case Study 1: Toyota Corolla After Collision

  • Scenario: A 2018 Toyota Corolla was brought in after a minor collision. The airbag light was on, and a DTC indicated an OCS issue.
  • Solution: The technician used a professional-grade aftermarket scan tool to perform OCS calibration. Following the OEM repair procedures, the technician reset the OCS and verified its functionality.
  • Outcome: The airbag light was cleared, and the OCS functioned correctly, ensuring the vehicle’s safety systems were restored.

• Case Study 2: Honda Civic with Replaced ECU

  • Scenario: A 2020 Honda Civic had its occupant classification ECU replaced. The new ECU required OCS calibration.
  • Solution: The technician used an OEM scan tool to perform the calibration. The scan tool guided the technician through the process, ensuring all parameters were correctly set.
  • Outcome: The OCS was successfully calibrated, and the vehicle’s airbag system was functioning as intended.

12. Future Trends in OCS Calibration and Scan Tool Technology

The field of OCS calibration and scan tool technology is continually evolving. Here are some future trends to watch:

• Advanced ADAS Integration: OCS systems are becoming increasingly integrated with ADAS features, requiring more sophisticated calibration procedures.
• Remote Calibration: The ability to perform OCS calibration remotely is gaining traction, allowing technicians to service vehicles without being physically present.
• AI-Powered Diagnostics: Artificial intelligence is being integrated into scan tools to provide more accurate and efficient diagnostic capabilities.
• Cloud-Based Systems: Cloud-based scan tools offer real-time updates and access to a vast library of diagnostic information.

13. How Remote Technician Education at CAR-SCAN-TOOL.EDU.VN Can Help

CAR-SCAN-TOOL.EDU.VN offers remote technician education programs that are designed to keep technicians up-to-date with the latest advancements in OCS calibration and scan tool technology.

Our remote programs provide:

• Flexible Learning: Study at your own pace and on your own schedule.
• Expert Instructors: Learn from experienced technicians and industry experts.
• Interactive Content: Engage with interactive training materials, videos, and simulations.
• Certification: Earn industry-recognized certifications that demonstrate your knowledge and skills.

14. Real-World Benefits of OCS Calibration Training

Investing in OCS calibration training can provide significant benefits for technicians and repair shops:

• Improved Accuracy: Proper training ensures technicians perform OCS calibrations accurately, reducing the risk of errors and system malfunctions.
• Increased Efficiency: Trained technicians can perform calibrations more quickly and efficiently, saving time and money.
• Enhanced Safety: Accurate OCS calibration ensures the vehicle’s airbag system functions correctly, enhancing the safety of drivers and passengers.
• Customer Satisfaction: Providing accurate and reliable OCS calibration services can improve customer satisfaction and build trust.

15. Maximizing Your Car Scan Tool for OCS Calibration: Tips and Tricks

To maximize the effectiveness of your car scan tool for OCS calibration:

• Keep Software Updated: Regularly update the scan tool’s software to ensure it supports the latest vehicles and procedures.
• Follow OEM Procedures: Always follow the OEM repair procedures for the specific vehicle you are servicing.
• Use High-Quality Tools: Invest in high-quality scan tools and accessories to ensure accurate and reliable results.
• Stay Informed: Stay up-to-date with the latest advancements in OCS calibration and scan tool technology.
• Practice Regularly: Practice OCS calibration procedures regularly to maintain your skills and proficiency.

16. Addressing Common Misconceptions About OCS Calibration

There are several misconceptions about OCS calibration that can lead to errors and system malfunctions:

• Misconception 1: OCS calibration is only needed after a major collision.
  • Reality: OCS calibration may be required after even minor collisions, as well as after ECU replacement, seat modifications, and other events.
• Misconception 2: All scan tools can perform OCS calibration.
  • Reality: Not all scan tools support OCS calibration. It’s essential to verify that the scan tool is compatible with the specific vehicle and system.
• Misconception 3: OCS calibration is a one-time process.
  • Reality: OCS calibration may need to be repeated periodically, especially if the vehicle undergoes repairs or modifications.

17. How to Troubleshoot OCS Calibration Failures

If you encounter failures during OCS calibration, here are some troubleshooting steps to follow:

• Check DTCs: Check for any diagnostic trouble codes (DTCs) related to the OCS system.
• Inspect Sensors: Inspect the OCS sensors for damage or malfunction.
• Verify Connections: Verify that all wiring and connections are secure and free from corrosion.
• Consult OEM Information: Consult the OEM repair procedures for troubleshooting guidance.
• Seek Expert Assistance: If you are unable to resolve the issue, seek assistance from an experienced technician or diagnostic specialist.

18. Understanding OCS Calibration in Different Vehicle Makes and Models

OCS calibration procedures can vary significantly between different vehicle makes and models. Here are some examples:

• Toyota: As Eric Mendoza noted, the OCS calibration requirements can vary even between different model years of the same vehicle. Technicians must consult the OEM repair procedures for each specific vehicle.
• Honda: Honda vehicles often require the use of an OEM scan tool for OCS calibration. The scan tool will guide the technician through the process, ensuring all parameters are correctly set.
• Ford: Ford vehicles may require the use of specialized calibration tools or procedures. Technicians should consult the OEM repair procedures for guidance.
• BMW: BMW vehicles often have complex OCS systems that require advanced diagnostic and calibration capabilities. Technicians may need to use specialized scan tools and software to perform OCS calibration.

19. The Financial Impact of Proper OCS Calibration

Proper OCS calibration can have a significant financial impact on repair shops:

• Reduced Liability: Accurate OCS calibration reduces the risk of airbag malfunctions, which can lead to liability issues.
• Improved Customer Satisfaction: Providing accurate and reliable OCS calibration services can improve customer satisfaction and build trust.
• Increased Revenue: Offering OCS calibration services can generate additional revenue for repair shops.
• Avoidance of Penalties: Failing to perform OCS calibration when required can result in penalties from regulatory agencies.

20. Why Choose CAR-SCAN-TOOL.EDU.VN for Your Automotive Training Needs?

CAR-SCAN-TOOL.EDU.VN is committed to providing high-quality automotive training that meets the needs of technicians and repair shops. Our programs are designed to be flexible, affordable, and effective, helping technicians stay up-to-date with the latest advancements in automotive technology.

• Expert Instructors: Learn from experienced technicians and industry experts.
• Comprehensive Curriculum: Our curriculum covers a wide range of automotive topics, including OCS calibration, diagnostics, and repair.
• Hands-On Training: Gain practical experience through hands-on workshops and simulations.
• Online Resources: Access a library of training materials, videos, and technical documents.
• Certification: Earn industry-recognized certifications that demonstrate your knowledge and skills.

21. The Growing Demand for Skilled Technicians in OCS Calibration

The demand for skilled technicians in OCS calibration is growing as vehicles become more complex and OCS systems become more sophisticated. Repair shops need technicians who have the knowledge and skills to perform OCS calibrations accurately and efficiently.

According to recent industry reports, the automotive repair industry is facing a shortage of skilled technicians. This shortage is expected to worsen in the coming years, making it even more important for technicians to invest in training and education.

22. The Legal and Ethical Considerations of OCS Calibration

OCS calibration is not only a technical process but also a legal and ethical responsibility. Repair shops have a duty to ensure that vehicles are repaired safely and correctly, and this includes performing OCS calibration when required.

Failing to perform OCS calibration can have serious consequences, including:

• Increased Risk of Injury: Malfunctioning airbags can increase the risk of injury in a collision.
• Legal Liability: Repair shops can be held liable for damages resulting from airbag malfunctions.
• Reputational Damage: Negative publicity can damage a repair shop’s reputation and lead to a loss of business.

23. OCS Calibration: Ensuring Vehicle Safety and Performance

OCS calibration is a critical process that ensures the safety and performance of modern vehicles. By investing in training and education, technicians can gain the knowledge and skills needed to perform OCS calibrations accurately and efficiently.

CAR-SCAN-TOOL.EDU.VN offers comprehensive training programs that are designed to meet the needs of both novice and experienced technicians. Our programs cover the theory behind OCS systems, calibration procedures, and troubleshooting techniques, helping technicians stay up-to-date with the latest advancements in automotive technology.

24. Staying Ahead in the Automotive Industry with Advanced Training

The automotive industry is constantly evolving, and technicians need to stay ahead of the curve by investing in advanced training. CAR-SCAN-TOOL.EDU.VN offers a wide range of training programs that are designed to help technicians develop the skills they need to succeed in today’s competitive market.

Our programs include:

• Advanced Diagnostics: In-depth training on automotive diagnostic principles and techniques.
• ADAS Calibration: Training on the calibration of Advanced Driver Assistance Systems.
• Electric Vehicle Repair: Training on the repair and maintenance of electric vehicles.
• Hybrid Vehicle Repair: Training on the repair and maintenance of hybrid vehicles.

25. Choosing the Right Training Program for Your Needs

Choosing the right training program is essential for maximizing your investment in education. CAR-SCAN-TOOL.EDU.VN offers a variety of training programs that are designed to meet the needs of different technicians and repair shops.

When choosing a training program, consider the following factors:

• Your Current Skill Level: Choose a program that matches your current skill level and experience.
• Your Career Goals: Choose a program that will help you achieve your career goals.
• The Program’s Curriculum: Review the program’s curriculum to ensure it covers the topics you are interested in.
• The Program’s Instructors: Learn about the program’s instructors and their experience.
• The Program’s Cost: Consider the program’s cost and whether it fits your budget.

26. Tools and Equipment Needed for OCS Calibration

Performing OCS calibration requires specific tools and equipment to ensure accuracy and safety:

• Car Scan Tool: A professional-grade scan tool capable of performing OCS calibration.
• OEM Repair Procedures: Access to OEM repair procedures for the specific vehicle being serviced.
• Torque Wrench: A torque wrench for tightening bolts to the correct specifications.
• Level: A level for ensuring the vehicle is parked on a level surface.
• Weight Set: A set of calibrated weights for verifying the OCS system’s accuracy.
• OBD-II Connector: A reliable OBD-II connector to establish communication with the vehicle’s computer.

27. Best Practices for OCS Calibration in a Repair Shop

To ensure OCS calibration is performed effectively in a repair shop, consider these best practices:

• Training: Provide technicians with comprehensive training on OCS calibration procedures.
• Equipment: Invest in high-quality scan tools and equipment.
• Procedures: Establish clear procedures for performing OCS calibration.
• Documentation: Document all OCS calibration procedures performed.
• Quality Control: Implement quality control measures to ensure accuracy and reliability.
• Updates: Stay up-to-date with the latest advancements in OCS calibration and scan tool technology.
• Safety: Prioritize safety during OCS calibration procedures.

28. Overcoming Resistance to New Technology in OCS Calibration

Some technicians may resist adopting new technology in OCS calibration due to fear of the unknown or a lack of confidence in their ability to learn new skills. To overcome this resistance:

• Provide Training: Offer comprehensive training on new technology.
• Highlight Benefits: Emphasize the benefits of new technology, such as improved accuracy and efficiency.
• Offer Support: Provide ongoing support and assistance to technicians who are learning new technology.
• Encourage Collaboration: Encourage technicians to collaborate and share their knowledge and experiences.
• Celebrate Successes: Celebrate successes in using new technology to boost morale and confidence.

29. Common Diagnostic Trouble Codes (DTCs) Related to OCS Calibration

Understanding common Diagnostic Trouble Codes (DTCs) related to OCS calibration is essential for effective diagnostics. Here are some examples:

DTC Code	Description	Possible Causes
B0051	Occupant Classification System Malfunction	Faulty OCS sensor, wiring issues, ECU malfunction
B0052	Occupant Classification System Calibration Error	Incorrect calibration procedure, faulty sensors, ECU malfunction
B0053	Occupant Classification System Weight Sensor	Faulty weight sensor, wiring issues, incorrect seat installation
B0054	Occupant Classification System Communication Error	Communication issues between OCS components, wiring problems, ECU malfunction

30. OCS Calibration and Its Impact on Insurance Claims

Proper OCS calibration can significantly impact insurance claims related to vehicle collisions. Accurate calibration ensures that the airbag system functions correctly, reducing the risk of injury and potential liability.

Insurance companies may require documentation of OCS calibration as part of the claims process, particularly after a collision. Failure to provide this documentation can result in delays or denials of claims.

31. Resources for Staying Updated on OCS Calibration Techniques

Staying updated on OCS calibration techniques is crucial for technicians to maintain their skills and proficiency. Here are some valuable resources:

• OEM Repair Procedures: Access OEM repair procedures for specific vehicle models.
• Industry Publications: Subscribe to industry publications that cover OCS calibration and other automotive topics.
• Online Forums: Participate in online forums where technicians can share their knowledge and experiences.
• Training Courses: Attend training courses and workshops on OCS calibration.
• Technical Service Bulletins (TSBs): Review Technical Service Bulletins (TSBs) for updates and common issues.

32. Benefits of Remote OCS Calibration Training from CAR-SCAN-TOOL.EDU.VN

Choosing remote OCS calibration training from CAR-SCAN-TOOL.EDU.VN offers numerous benefits:

• Flexibility: Study at your own pace and on your own schedule.
• Accessibility: Access training materials from anywhere with an internet connection.
• Cost-Effective: Save on travel and accommodation expenses.
• Expert Instructors: Learn from experienced technicians and industry experts.
• Comprehensive Curriculum: Our curriculum covers a wide range of OCS calibration topics.
• Certification: Earn industry-recognized certifications that demonstrate your knowledge and skills.

33. Frequently Asked Questions (FAQs) About OCS Calibration

1. What is OCS calibration?

OCS calibration, also known as zero-point setting, ensures the vehicle’s airbag system functions correctly by accurately determining the weight and position of the occupant in the front passenger seat.

2. When is OCS calibration required?

OCS calibration is required after a collision, ECU replacement, sensor replacement, seat modifications, or when the system outputs a diagnostic trouble code (DTC).

3. Can car scan tools perform OCS calibration?

Yes, many advanced car scan tools can perform OCS calibration, but it depends on the tool’s capabilities and the vehicle’s make and model.

4. What types of scan tools support OCS calibration?

OEM scan tools, professional-grade aftermarket scan tools, and specialized calibration tools support OCS calibration.

5. How do I perform OCS calibration using a scan tool?

Connect the scan tool, access the OCS function, follow on-screen instructions, input data, execute calibration, verify the process, and clear any diagnostic codes.

6. What are the common challenges in performing OCS calibration?

Common challenges include software updates, compatibility issues, incorrect procedures, sensor problems, and environmental factors.

7. Why is training and education important for OCS calibration?

Proper training ensures technicians perform OCS calibrations accurately, reduces the risk of errors, and enhances the safety of drivers and passengers.

8. How can remote technician education at CAR-SCAN-TOOL.EDU.VN help me?

CAR-SCAN-TOOL.EDU.VN offers flexible learning, expert instructors, interactive content, and certification to enhance your skills in OCS calibration and automotive diagnostics.

9. What is the financial impact of proper OCS calibration?

Proper OCS calibration reduces liability, improves customer satisfaction, increases revenue, and helps avoid penalties from regulatory agencies.

10. Where can I find resources to stay updated on OCS calibration techniques?

You can find resources in OEM repair procedures, industry publications, online forums, training courses, and Technical Service Bulletins (TSBs).

Call to Action

Ready to elevate your automotive diagnostic skills and master OCS calibration? Contact CAR-SCAN-TOOL.EDU.VN today to learn more about our comprehensive remote training programs. Our expert instructors and flexible learning options will help you stay ahead in the rapidly evolving automotive industry.

Visit CAR-SCAN-TOOL.EDU.VN or contact us via WhatsApp at +1 (641) 206-8880. Our US support office is located at 555 Automotive Way, Suite 100, Los Angeles, CA 90017, United States. Let us help you unlock your full potential in automotive technology!
